Clamps
Clamps picture

The Clamps have a gold zinc passivated coating to prevent surface rust and for easy removal of glue. The Clamps have been designed for work pieces up to 70mm high and can be manufactured from 600mm opening to 3 metre opening. Where higher work pieces are to be clamped Extender Rocker Plates can be used. For thinner work pieces (eg: V-groove panels) Hold Down Bars can be used.

The Clamps feature a Quick Action Rear Stop and fine screw threads for fast and precise adjustment. The Clamps are fitted with Speed Handles for fast and easy clamping (for use on the Clamping Rack) or with Hex Nuts for use on the Multi Station Rotating Clamping Systems with the hydraulic tightener.

A Rear Mounting Plate is fitted on clamps for use on the Clamping Rack which allows quick adjustment from row to row and ease of movement from side to side. A Fish Plate is fitted on the clamps for use on the Multi Station Rotating Clamping Systems which allows ease of movement from side to side.

As Clamping requirements increase the clamps can be converted to adapt from the Clamping Rack to the Multi Station Rotating Clamping Systems.

Quick Action Rear Stop

The Clamps have a Quick Action Rear Stop fitted to ensure fast location.   Once the work piece is in the clamps the Quick Action Rear Stop is moved to the back of the work piece. As the clamp is tightened the toggle will locate in to the nearest hole before clamping the work piece.

Speed Handles and Hex Nuts

Speed Handles
Speed handles can be fitted to Clamps for manual tightening.  The Speed Handle allows for easy and precise tightening of the work piece.  The user is able to feel the amount of pressure that is being applied as the clamp tightens on the work piece.

Hex Nuts
hex nuts are fitted to Clamps for use on Multi Station Clamping Systems or on Clamps to be tightened with a Nut runner.   A socket handle can be supplied to tighten the clamps by hand.

Rear Mounting Plates

The Clamps can be fitted with a Multi Station Mount Plate for mounting the clamps on the Multi Station Rotating Clamping System and for Clamps to be used on Clamping Racks a Rack Mounting Plate is fitted.

Both mounting plates are designed to ensure smooth and fast adjustment of the Clamps position.

The Rack Mounting Plates can be changed to the Multi Station Mount Plate when upgrading to a Multi Station Rotating Clamping System

Hold Down Bars

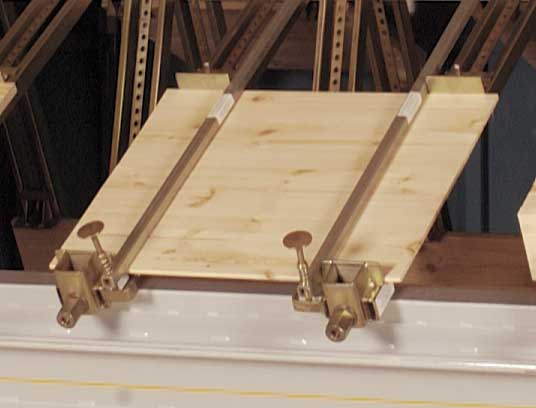

Hold Down Bars can be used when gluing thin panels to hold the panels flat and prevent the panels from buckling during tightening. The Hold Down Bars are easily placed on to the clamps and has height adjustment to suit varying thickness. The Hold Down Bars can be used on the Clamping Rack and Multi Station Rotating Clamping System.

Extender Rocker Plates

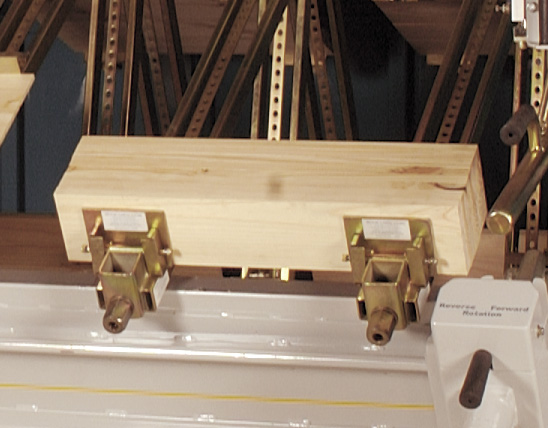

Extender Rocker Plates can be used to increase the clamping height while maintaining even pressure on the face of the timber and can be used on the Clamping Rack and Multi Station Rotating Clamping System.

The Extender Rocker Plates are available in three sizes increasing clamping height up to 180mm high. ER100 increasing the Clamp height from 70mm to 120mm (is designed for the Multi Station Rotating Clamping System), ER120 will increase the Clamp height from 70mm to 140mm and the ER150 will increase the Clamp height to 180mm.
